伯樂Western Blot蛋白電轉槽
伯樂Mini-Trans Blot小型蛋白電轉印槽
伯樂Mini-Trans Blot 小型蛋白凝膠電轉印槽(1703930),即WB電轉儀、Western Blot轉膜儀。本欄目提供了Mini-Trans Blot 工作組件和常規Western Blot實驗平臺的選型配置方案指南。
設備名稱:蛋白電轉儀 WB電轉印槽 濕式轉印槽 轉膜槽
制 造 商:美國伯樂(Bio-Rad)公司 產 地:中國
品 牌:伯樂(Bio-Rad)
型 號:Mini-Trans Blot 配置方案:見【訂貨指南】
主要功能用途
蛋白電轉印槽,習稱轉膜槽、轉膜儀。伯樂Mini Trans-Blot電轉印槽可把電泳分離后的蛋白質或核酸從聚丙烯酰胺等凝膠中轉印至如PVDF膜、硝酸纖維素膜等支持載體上。提供大分子量跨度范圍提供蛋白高效而穩定轉印。Mini Trans-Blot能同時容納2個小型凝膠轉印電極,快速高質量地轉印2塊小型凝膠,主要用于實驗室蛋白印記分析(Western Blotting)和核酸轉印(Northern Bloting\Southern Blotting)分析。
性能特點
伯樂Mini-Trans Blot小型電轉槽工作時的電壓設置、轉印時間和冷卻方法,均可根據樣品屬性靈活選擇。
可在1小時內完成2塊10×7.5 cm小型凝膠轉印,也可以進行低強度隔夜轉印。
采用電極絲,相距4cm ,產生強電場,產熱少。
彩色標記的轉印夾和電極確保轉印過程中凝膠的正確定向。
藍色致冷芯可完全置于小型Trans-Blot 轉印槽內,在快速轉印過程中吸收熱量。
Mini-Trans Blot電轉槽與Mini-PROTEAN Tetra cells (1658001)垂直電泳槽兩套流程,所用的緩沖液槽組件完全兼容,可互換。
主要技術規格
伯樂Western Blot 電轉印槽Mini-Trans Blot的轉移電極芯凝膠容量:2塊Mini-Protean手灌膠,2塊Mini-Protean預制膠或2塊Ready Gel預制液
最大凝膠尺寸(寬×長):10×7.5cm
緩沖液要求:450mL
安裝運行條件
相對濕度范圍:0~95% R.H.
工作環境溫度:0℃~40℃
外觀尺寸(寬×長×高):12×16×18cm
電泳槽重量:1.0kg
(推薦的配套電源PowerPac HC)
組成配置
1、蛋白電轉印槽
伯樂Western Blot電轉印槽Mini-Trans Blot全套工作配置由緩沖液槽組件(Buffer Tank and Lid)和電轉印模塊(Mini Trans-Blot Module)兩部分組成。

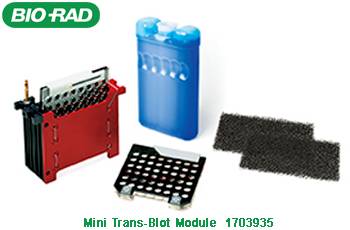

電轉印模塊(1703935)包含Mini Trans-Blot轉移電極芯、轉印三明治夾、轉印海綿墊、冷卻降溫藍色冰盒,但不包含緩沖液槽組件。
緩沖液槽組件(1658040)為蛋白跑膠、轉膜通用。
Mini-Trans Blot標準配置提供一槽和一模塊,最多可進行2塊凝膠的電轉膜操作。
如需同時進行4塊凝膠轉膜,則需額外添置一個電轉移模塊與現有蛋白電泳用的緩沖液槽組合,即可進行蛋白電轉實驗。
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
電轉印模塊 | Bio-Rad | 1703935 | 1套 | Mini Trans-Blot Module includes: 2 gel holder cassettes; Foam pads; Electrode assembly; Cooling unit; (does not include lower buffer tank and lid) | 詢價 詢價 |

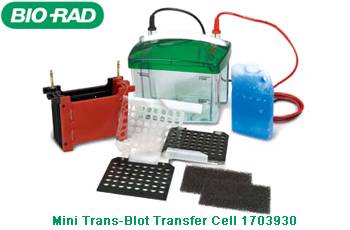

Mini Trans-Blot 小型電轉印槽 | Bio-Rad | ?1703930 | 1套 | Mini Trans-Blot Electrophoretic Transfer Cell for two 10×7.5cm gels includes: Mini Trans-Blot Module (1703935); Buffer Tank and Lid (1658040 | 詢價 詢價 |
2. 蛋白電轉槽組件
伯樂Mini-Trans Blot小型電轉槽可更換附件主要包括轉移電極芯(1703812)、轉印三明治夾(1703931)、轉印海綿墊(1703933)和輔助工具。
轉印海綿墊屬于易損件。
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
Mini Trans-Blot轉移電極芯 | Bio-Rad | 1703812 | 1個 | Mini Trans-Blot Central Core assembly module for use with Mini Trans-Blot cell. | 詢價 |
轉移三明治夾 | Bio-Rad | 1703931 | 1個 | Mini Gel Holder Cassette,maximum gel size 10×7.5cm for use with Mini Trans-Blot cell. | 詢價 |
轉印海綿墊 | Bio-Rad | 1703933 | 4片/包 | replacement pads,8×11cm, for use with Mini Trans-Blot Cell. | 詢價 |
藍色冷卻盒 | Bio-Rad | 1703919 | 1個 | blue cooling unit use with Mini-Protean Tetra cell tank. | 詢價 |
轉印滾筒 | Bio-Rad | 1651279 | 1個 | roller, use with blotting apparatus and whole gel eluter | 詢價 |
基本耗材
伯樂Western Blot電轉印槽Mini-Trans Blot的基本耗材,主要包括WB轉印膜、轉印濾紙等。
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
7.5×10cm厚轉印濾紙 | Bio-Rad | 1703932 | 50片/包 | high-wet-strength blot absorbent filter paper for Mini Trans-Blot Cassette 7.5×10cm thick 0.84mm thickness used with semi-dry or wet transfer blotting. | 詢價 |
7×8.4cm加厚轉印濾紙 | Bio-Rad | 1703966 | 60片/包 | 7×8.4cm extra thick blot absorbent filter paper 2.45mm thickness for Mini-Protean or Ready Gel Precast Gels used for semi-dry or wet transfer blotting. | 詢價 |
小型PVDF轉印膜 | Bio-Rad | 1620174 | 10片/包 | 0.2μm, precut 7×8.4cm Immun-Blot PVDF Membranes for chemiluminescent and colorimetric western blots | 詢價 |
小型PVDF膜-濾紙三明治套裝 | Bio-Rad | 1620219 | 50套/盒 | This Immun-Blot PVDF membrane package contains 50 sheets of 7×8.5cm precut, preassembled blotting membrane and filter paper sandwiches, which fit Ready Gel and Mini-protean precast gels. | 詢價 |
PVDF膜卷筒 | Bio-Rad | 1620177 | 1卷 | Immun-Blot PVDF Membrane Roll 0.2 μm, 26 cm×3.3 m,bulk membrane for high binding (150–160 μg/cm2) immunoblotting | 詢價 |
低熒光 PVDF膜-濾紙三明治套裝 | Bio-Rad | 1620260 | 10套/盒 | This Immun-Blot LF-PVDF membrane package contains 10-sheet, 7×8.5cm precut membrane and 20 sheets of precut filter paper. | 詢價 |
訂貨指南
伯樂Mini-Trans Blot小型濕轉槽可容納一個電轉印模塊,每輪運行可完成2塊凝膠轉膜。視蛋白電泳流程中凝膠的數量、通量要求,可配置1-2個轉移模塊(1703935)以便一輪同時完成2塊或4塊凝膠的轉移。
伯樂Mini-Trans Blot電轉槽運行需相應電泳電源,如常用的Bio-Rad PowerPac Basic基礎型電源(1645050,最大輸出電流400mA,可同時驅動2塊小型凝膠電轉)、高電流型電源PowerPacHC(1645052,最大輸出電流3.0A,可同時驅動4塊小型凝膠電轉)均可。
根據實驗室自身條件情況,還可搭配Mini-Protean Tetra蛋白垂直電泳槽,構建完整的Western電泳-轉膜全流程平臺。
序號 | 品名 | 貨號 | 套裝配置描述 | 報價 |
1-1 | 小型電轉印槽 | 1703930 | Mini Trans-Blot Electrophoretic Transfer Cell 配置詳見:“主要附件”部分描述 | 詢價 詢價 |

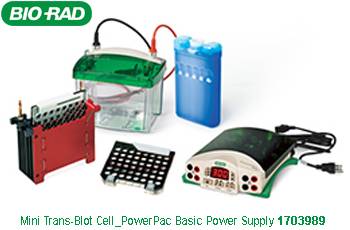

1-2 | 電源-電轉Basic套裝(2膜) | 1703989 | Blot and Power Supply bundle Includes: ■ Mini Trans-Blot Cell (1703930); ■ PowerPac Basic Power Supply (1645050) | 詢價 詢價 |

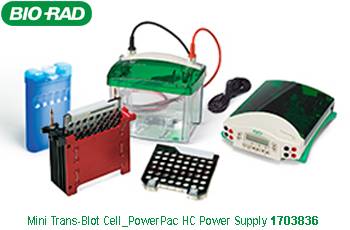

1-3 | 電源-電轉HC套裝(2膜) | 1703836 | Blot and Power Supply bundle includes: ■ Mini Trans-Blot Cell (1703930) ■ PowerPac HC Power Supply (1645052) | 詢價 詢價 |

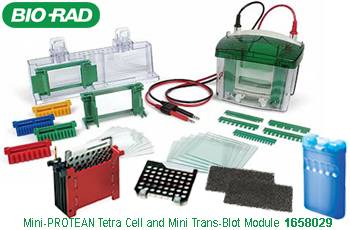

2-1 | 電泳-轉印槽組合裝 (1.0mm/10-well/4-gel/2-blot) | 1658029 | Electrophoresis and blot Bundle (10-well/1.0mm/4-gel) includes: Mini-PROTEAN Tetra Cell system (1658001); Mini Trans-Blot Module (1703935). | 詢價 詢價 |

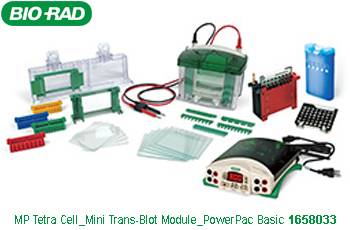

2-2 | Basic電源-電泳-轉印套裝 (1.0mm/10-well/4-gel/2-blot) | 1658033 | Electrophoresis, blot and Power Supply Bundle includes: Mini-PROTEAN Tetra Cell for handcast 4-gel (1658001); Mini Trans-Blot Module (1703935); PowerPac Basic Power Supply (1645050). | 詢價 詢價 |

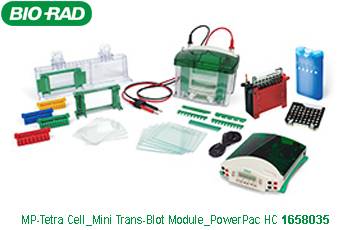

2-3 | HC電源-電泳-轉印套裝 (1.0mm/10-well/4-gel/2-blot) | 1658035 | Electrophoresis, blot and Power Supply Bundle for 10-well, 1.0 mm, 4-gel system includes: Mini-PROTEAN Tetra Cell (1658001); Mini Trans-Blot Module (1703935); PowerPac HC Power Supply (1645052) | 詢價 詢價 |

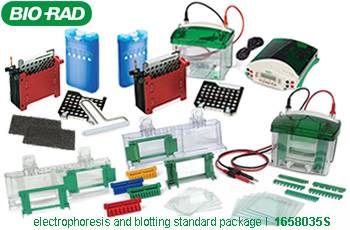

2-4 | HC電源-電泳-轉印套裝 (1.0mm/10-well/4-gel/4-blot) | 1658035-S | Electrophoresis, blot and Power Supply Bundle includes: Mini-PROTEAN Tetra Cell for handcast 4-gel (1658001); Mini Trans-Blot Transfer Cell (1703930); Mini Trans-Blot Module (1703935); PowerPac HC Power Supply (1645052). | 詢價 詢價 |
2-5 | HC電源-電泳-轉印高級套裝 (1.0mm/10-well/4-gel) (1.5mm/10-well/4-gel) (4-blot) | 1658035-U | Electrophoresis, blot and Power Supply Bundle (10-well/1.0mm/4-gel) includes: Mini-PROTEAN Tetra Cell for handcast 4-gel (1658001); Mini-PROTEAN Tetra Cell Casting Module (1658021); Mini Trans-Blot Cell (1703930); Mini Trans-Blot Module (1703935); PowerPac HC Power Supply (1645052). | 詢價 詢價 |
3-1 | 電泳-轉印槽組合裝 (1.5mm/10-well/2-gel/2-blot) | 16580007-B | Electrophoresis and blot Bundle (10-well/1.5mm/2-gel) includes: Mini-PROTEAN Tetra Cell for handcast 2-gel (1658007); Mini Trans-Blot Module (1703935). | 詢價 詢價 |
3-2 | 電泳-轉印組合裝 (1.5mm/10-well/4-gel/2-blot) | 16580006-B | Electrophoresis, blot and Power Supply Bundle includes: Mini-PROTEAN Tetra Cell for handcast 4-gel (1658006); Mini Trans-Blot Module (1703935); | 詢價 詢價 |
3-3 | Basic電源-電泳-轉印套裝 (1.5mm/10-well/2-gel/2-blot) | 16580007-S | Electrophoresis, blot and Power Supply Bundle includes: Mini-PROTEAN Tetra Cell for handcast 2-gel (1658007); Mini Trans-Blot Module (1703935); PowerPac Basic Power Supply (1645050). | 詢價 詢價 |
3-4 | Basic電源-電泳-轉印套裝 (1.5mm/10-well/4-gel/2-blot) | 16580006-S | Electrophoresis, blot and Power Supply Bundle includes: Mini-PROTEAN Tetra Cell for handcast 4-gel (1658006); Mini Trans-Blot Module (1703935); PowerPac Basic Power Supply (1645050). | 詢價 詢價 |
3-5 | HC電源-電泳-轉印套裝 (1.5mm/10-well/4-gel/4-blot) | 16580006-U | Electrophoresis, blot and Power Supply Bundle includes: Mini-PROTEAN Tetra Cell for handcast 4-gel (1658006); Mini Trans-Blot Module (1703935); Mini Trans-Blot Cell (1703930) PowerPac HC Power Supply (1645052). | 詢價 詢價 |
4-1 | 電泳-轉印槽組合裝 (1.0mm/10-well/2-gel) | 1658003-C | Electrophoresis and blot Bundle (10-well/1.0mm/2-gel) includes: Mini-PROTEAN Tetra Cell system (1658003); Mini Trans-Blot Module (1703935). | 詢價 詢價 |
4-2 | Basic電源-電泳-轉印套裝 (1.0mm/10-well/2-gel/2-blot) | 1658003-S | Electrophoresis, blot and Power Supply Bundle includes: Mini-PROTEAN Tetra Cell for handcast 4-gel (1658003); Mini Trans-Blot Module (1703935); PowerPac Basic Power Supply (1645050). | 詢價 詢價 |
4-3 | 電泳-轉印槽組合裝 (1.5mm/10-well/2-gel) | 1658007-C | Electrophoresis and blot Bundle (10-well/1.5mm/2-gel) includes: Mini-PROTEAN Tetra Cell system (1658007); Mini Trans-Blot Module (1703935). | 詢價 詢價 |
4-4 | Basic電源-電泳-轉印套裝 (1.5mm/10-well/2-gel/2-blot) | 1658007-S | Electrophoresis, blot and Power Supply Bundle includes: Mini-PROTEAN Tetra Cell for handcast 4-gel (1658007); Mini Trans-Blot Module (1703935); PowerPac Basic Power Supply (1645050). | 詢價 詢價 |
5-1 | 蛋白預制膠 電泳-轉印槽組合 | 1658030 | Vertical Electrophoresis and Mini Trans-Blot Module Bundle for Mini Precast 4-Gel includes: 4-gel Mini-PROTEAN Vertical Cell (1658004); Mini Trans-Blot Module (1703935). | 詢價 詢價 |
5-2 | 蛋白預制膠 Basic電源電泳轉印套裝 | 1658034 | Electrophoresis, blot and Power Supply Bundle for precast 4-gel includes: Mini-PROTEAN Tetra Cell for Mini Precast Gels (1658004); Mini Trans-Blot Module (1703935); PowerPac Basic Power Supply (1645050). | 詢價 詢價 |
5-3 | 蛋白預制膠 HC電源電泳轉印套裝 | 1658036 | Electrophoresis, blot and Power Supply Bundle includes: for Mini Precast Gels, 4-gel Mini-PROTEAN Tetra Cell (1658004); Mini Trans-Blot Module (1703935); PowerPac HC Power Supply (1645052). | 詢價 詢價 |
(更多配置方案咨詢客服)
-
