himac超速離心機轉頭適配離心管

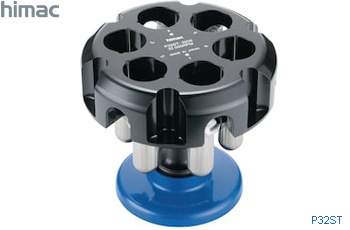

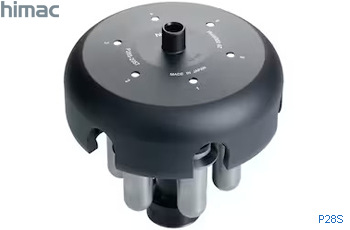

CP100NX/90NX/80NX超速離心機P32ST P28S水平轉頭
P32ST、P28S水平轉頭，工作容量6×40mL，離心管及配套適配器通用，常用于密度梯度離心分離純化。適用于Himac CP100NX、CP90NX和CP80NX立式超速離心機。
商品名稱：水平轉頭 甩平吊籃轉頭Swinging bucket rotor
制 造 商：Eppendorf Himac Technologies公司
品 牌：Himac
轉頭配套離心管及適配器報價見：［訂購信息］
詳細描述
P32ST、P28S水平轉頭，最大工作容量6×40mL，主要用于密度梯度離心分離純化。適用于Himac CP100NX、CP90NX和CP80NX立式超速離心機。

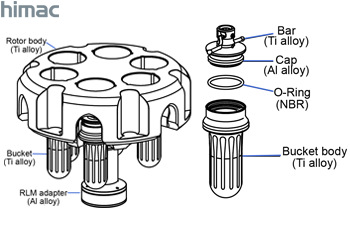

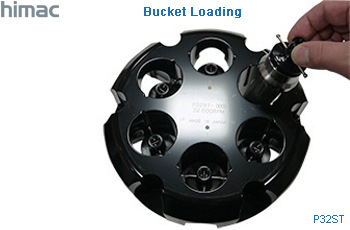

P28S開發使用較早，吊籃安裝為傳統轉頭側面掛載方式。P32ST為新型頂部下滑式掛載方法，操作更便捷，轉頭轉速高、分離效能高，可節省離心時間。
1、技術規格
Rotor type | P32ST | P28S |
Max. speed | 32000 rpm | 28000 rpm |
Max. RCF | 180000×g | 146000×g |
Allowable density at maximum speed | 1.2g/mL | 1.2g/mL |
K Factor at maximum speed | 198 | 252 |
Nominal rotor capacity | 40mL×6 | 40mL×6 |
Material of the rotor body | Ti alloy | Al alloy |
Material of the buckets | Ti alloy | NA |
Tube size | φ2.6×9.0 cm | φ26×90 mm |
Weight(includes bucket and cap) | 7.1 kg | 6.3 kg |
2、轉頭標準組件(Packing list)
Rotor type | P32ST | P28S |
40PA Tube | 5720411139 2pkgs(100pcs) | |
Tweezers | 5720411243 1x | |
NBR O-Ring | 5720410172 18x | |
Bucket Stand | 5720411379 1x | |
Rotor Stand | 5720410232 1x | |
Lubricate for Screw | 5720411230 1x | |
Silicone Vacuum Grease | 5720850317 1x | |
Tool Box (C) | 5720850222 1x | |
訂購信息
P32ST、P28S水平轉頭水平轉頭標準配置含40PA薄壁開口超速離心管，各配套離心管兩個轉頭間可通用。
除40PA管，還可提供40PA、40PET、40SS Tube(B)和33PA熱封管。
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
P32ST Swinging bucket rotor | Himac | 5720214003 | 1 set | P32ST Swinging bucket rotor with the RLM adapter Nominal rotor capacity: 6×40mL 32000 rpm/RCF 180000×g | 詢價 |
P28S Swinging bucket rotor | Himac | 5720214005 | 1 set | P28S Swinging bucket rotor with the RLM adapter Nominal rotor capacity: 6×40mL 28000 rpm/RCF 141000×g | 詢價 |
備用吊籃密封圈 | Himac | 5720410172 | 12pcs/pk | NBR O-Ring applicable to P28S/P32ST/R25ST rotors | 詢價 詢價 |
40PA薄壁開口管 | Himac | 5720411139 | 50pcs/pk | 40PA Tube for rotors P28S/P45AT/P50AT2/P70AT Tube Dimensions (outer diameter × height): 2.6×9.0cm Net Sample Volume: 32.5 mL Material: PP Maximum Speed: 70000rpm/RCF 505000×g | 詢價 詢價 |
40PC薄壁開口管 | Himac | 5720411140 | 50pcs/pk | 40PC Tube applicable to P32ST/P28S/R25ST rotors Tube Dimensions (outer diameter × height): 2.6×9.0cm Net Sample Volume: 38.7 mL Material: PC Maximum Speed: 28000rpm/RCF 141000×g | 詢價 詢價 |
40PET薄壁開口管 | Himac | 5720411148 | 50pcs/pk | 40PET Tube for use with E3-AL Cap Tube Dimensions (outer diameter × height): 2.6×9.0cm Net Sample Volume: 37 mL Material: PET Maximum Speed: 40000rpm/RCF 165000×g | 詢價 詢價 |
40SS不銹鋼離心管(B) | Himac | 5720411147 | 2pcs/pk | 40SS Tube(B) use with E-SS Lid (B) Tube Dimensions (outer diameter × height): 2.6×9.0cm Net Sample Volume: 23.8 mL Material: SST Maximum Speed: 32000rpm/RCF 105000×g | 詢價 詢價 |
33PA Seal Tube | Himac | 5720411134 | 50pcs/pk | Tube Dimensions: 2.6×8.8cm Net Sample Volume: 34 mL Material: PP Maximum Speed: 28000rpm/RCF 141000×g | 詢價 詢價 |
E4蓋帽墊片 | Himac | 5720411293 | 1pc/pk | E4 Space Cap used in P28S P32ST R25ST rotors For 33PA Seal Tube | 詢價 |
-
