產品中心更多分類
Thermo離心機轉頭適配器

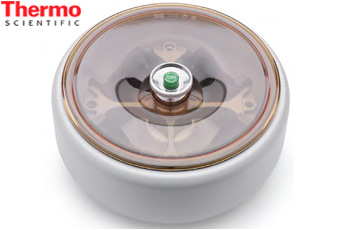

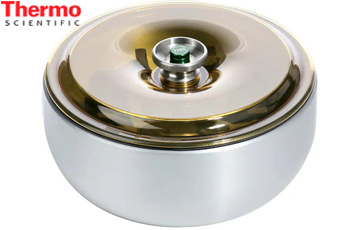

BIOShield 1000A/720密封水平轉頭適配器
BIOShield 1000A、BIOShield 720水平轉頭具有碗形防風罩和密封蓋的一種具有生物安全防護功能的特殊水平轉頭,可用于采血管分離、細胞培養和微生物樣品的分離,有多種離心管適配器可選。
商品名稱:BIOShield 1000A BIOShield 720水平轉頭
制 造 商:美國賽默飛(Thermo Fisher)公司
品 牌:Thermo Scientific
適配器詳情見:【訂購信息】
詳細介紹

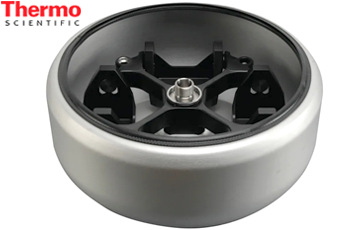

BIOShield 1000A、BIOShield 720水平轉頭是外部為碗形防風罩(windshield bowl)、碗底中央為傳統水平轉頭結構、帶密封蓋的一種水平轉頭。防風罩設計使轉頭運行中風阻極大降低,轉頭得以在高達6000rpm的轉速下安靜、穩定運行。
密封蓋為Auto-Lock自鎖蓋。轉頭在驅動軸上正確就位后可自動鎖緊,無需輔助工具手動擰緊。具有防生物污染功能,可用于采血管分離、細胞培養和微生物樣品的分離。

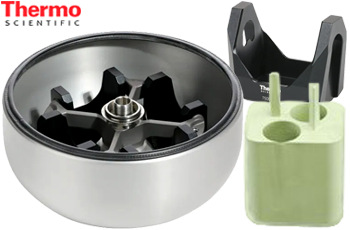

轉頭完整工作組件包括:轉頭主體(轉頭架機風擋罩)、吊籃、密封蓋。離心管適配器每套 4 個單獨銷售。
技術規格:
型號 | BIOShield 1000A | BIOShield 720 |
轉頭離心容量 | 4×250mL離心瓶 16×50mL錐形管 36×15mL錐形管 64×10mL采血管(16×100 mm) 80×5/7 mL采血管(14×118mm) | 4×180mL離心瓶 8×50mL錐形管 24×15mL錐形管 48×10mL采血管(16×100 mm) 48×5/7mL采血管(13×75-100mm) |
最高轉速 | 6000rpm/Max. RCF 7164×g | 6300rpm/Max. RCF 7188×g |
離心半徑(max./min.) | 17.8 / 8.2 cm | 16.2/6.7 cm |
加減速時間(Acceleration/braking) | 120/80 s | 65/65 s |
可耐受滅菌溫度(autoclavable temperature) | 121℃ | |
轉頭自重 | 8.5 kg | 5.7 kg |
適用機型 | Multifuge X4R pro / Multifuge X3R | Multifuge X1R pro / Multifuge X1R |
Sorvall ST4R Plus/ Sorvall ST40R | Sorvall ST1R Plus / Sorvall ST 16R |
訂購信息
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
BIOShield 1000A水平轉頭 | Thermo | ?75003182 | each | BIOShield 1000A Swinging-Bucket Rotor. | 詢價 詢價 |
250mL離心瓶適配器 | Thermo | 75003737 | 4pcs/pk | 250mL Flat bottom bottle Adapters Rotor capacity (places × volume): 4×250mL Maximum tube dimensions (?×L): 63×130 mm | 詢價 詢價 |
150mL圓底開口管適配器 | Thermo | 75003738 | 4pcs/pk | 150mL Round bottom open-top tube Adapters Rotor capacity (places × volume): 4×150mL Maximum tube dimensions (?×L): 56×124 mm | 詢價 詢價 |
100mL圓底開口管適配器 | Thermo | 75003742 | 4pcs/pk | 100mL Round bottom open-top tube Adapters Rotor capacity (places × volume): 4×100mL Maximum tube dimensions (?×L): 46×124 mm | 詢價 詢價 |
3×50mL圓底管適配器 | Thermo | 75003749 | 4pcs/pk | 50mL Round bottom tube Adapters Rotor capacity (places × volume): 12×50mL Maximum tube dimensions (?×L): 35×121 mm | 詢價 詢價 |
4×45mL圓底管適配器 | Thermo | 75003750 | 4pcs/pk | 45mL Flat/round tube Adapters Rotor capacity (places × volume): 16×45mL Maximum tube dimensions (?×L): 30×121 mm | 詢價 詢價 |
30mL管適配器 | Thermo | 75003755 | 4pcs/pk | 30mL Sterilin universal tube Adapters Rotor capacity (places × volume): 16×30mL Maximum tube dimensions (?×L): 30×121 mm | 詢價 詢價 |
25mL DIN管適配器 | Thermo | 75003756 | 4pcs/pk | 25mL DIN Round bottom tube Adapters Rotor capacity (places × volume): 24×25mL Maximum tube dimensions (?×L): 26×121 mm | 詢價 詢價 |
14mL管適配器 | Thermo | 75003758 | 4pcs/pk | 14mL Flanged round bottom tube Adapters Rotor capacity (places × volume): 36×14mL Maximum tube dimensions (?×L): 18×121 mm | 詢價 詢價 |
14mL尿樣管適配器 | Thermo | 75003759 | 4pcs/pk | 14mL Round or conical urine tube Adapters Rotor capacity (places × volume): 36×15mL Maximum tube dimensions (?×L): 17×124 mm | 詢價 詢價 |
10mL采血管適配器 | Thermo | 75003767 | 4pcs/pk | 10mL Blood collection Tube (16×100mm) Adapters Rotor capacity (places × volume): 64×10/15mL Maximum tube dimensions (?×L): 17×118 mm | 詢價 詢價 |
5/7mL采血管適配器 | Thermo | 75003768 | 4pcs/pk | 5/7mL Blood collection tube Adapters Rotor capacity (places × volume): 80×5/7mL Maximum tube dimensions (?×L): 14×118 mm | 詢價 詢價 |
1.5mL微量管適配器 | Thermo | 75003770 | 4pcs/pk | 1.5/2mL Microtube Adapters Rotor capacity (places × volume): 224×2mL Maximum tube dimensions (?×L): 11×50 mm | 詢價 詢價 |
4x50m錐形適配器 | Thermo | 75003643 | 4pcs/pk | 50mL Conical tube Adapters Rotor capacity (places × volume): 12×50mL Maximum tube dimensions (?×L): 30×121 mm | 詢價 詢價 |
15mL錐形管適配器 | Thermo | 75003642 | 4pcs/pk | 15mL Conical tube Adapters Rotor capacity (places × volume): 36×15mL Maximum tube dimensions (?×L): 17×120 mm | 詢價 詢價 |
BIOShield 720 | |||||
BIOShield 720水平轉頭 | Thermo | 75003183 | each | ?BIOShield 720 with SlideCoat Nominal Rotor capacity: 4×180mL (Tube adapters sold separately) | 詢價 詢價 |
180mL旋蓋離心瓶 | Thermo | 75003800 | 12pcs/pk | 180mL Bio-bottle - polypropylene | 詢價 |
180mL離心瓶適配器 | Thermo | 75003693 | 4pcs/set | 180mL Bio-bottle Nominal Rotor capacity: 4×180mL Maximum tube dimensions: 56×128mm | 詢價 詢價 |
100mL圓底開口管適配器 | Thermo | 75003814 | 4pcs/set | 100mL Round bottom open-top tube adapters Nominal Rotor capacity: 4×100mL Maximum tube dimensions: 44×120mm | 詢價 詢價 |
50mL錐形管適配器 | Thermo | 75003677 | 4pcs/set | 50mL Conical tube adapters Nominal Rotor capacity: 4×2×50mL Maximum tube dimensions: 30×116mm | 詢價 詢價 |
50mL DIN管適配器 | Thermo | 75003816 | 4pcs/set | 50mL DIN round bottom tube adapters Nominal Rotor capacity: 4×2×50mL Maximum tube dimensions: 34×109mm | 詢價 詢價 |
30mL管適配器 | Thermo | 75003818 | 4pcs/set | 30mL Sterilin universal tube adapters Nominal Rotor capacity: 4×4×30mL Maximum tube dimensions: 26×105mm | 詢價 詢價 |
25mL DIN管適配器 | Thermo | 75003817 | 4pcs/set | 25mL DIN round bottom tube adapters Nominal Rotor capacity: 4×5×25mL Maximum tube dimensions: 25×107mm | 詢價 詢價 |
15ml錐形管適配器 | Thermo | 75003678 | 4pcs/set | 15mL Conical tube adapters Nominal Rotor capacity: 4×6×15mL Maximum tube dimensions: 17×120mm | 詢價 詢價 |
15mL Sarstedt 管適配器 | Thermo | 75003820 | 4pcs/set | 15mL Sarstedt tube adapters Nominal Rotor capacity: 4×11×15mL Maximum tube dimensions: 17×103mm | 詢價 詢價 |
10mL 采血管適配器 | Thermo | 75003701 | 4pcs/set | 10mL Blood collection tube(16×100mm) adapters Nominal Rotor capacity: 4×12×10mL Maximum tube dimensions: 17×105mm | 詢價 詢價 |
5/7mL采血管適配器 | Thermo | 75003821 | 4pcs/set | 5/7mL(13×75-100 mm) Blood collection tube adapters Nominal Rotor capacity: 4×12×5/7mL Maximum tube dimensions: 13×106mm | 詢價 詢價 |
5/7ml圓底開口管適配器 | Thermo | 75003822 | 4pcs/set | 5/7mL Round bottom open-top tube adapters Nominal Rotor capacity: 4×20×5/7mL Maximum tube dimensions: 13×104mm | 詢價 詢價 |
40×2mL微量管適配器 | Thermo | 75003823 | 4pcs/set | 1.5/2mL Conical microtube adapters Nominal Rotor capacity: 4×40×2mL Maximum tube dimensions: 11×45mm | 詢價 詢價 |
-
