Thermo離心機轉頭適配器
F15-6x100y/F10-6x100 LEX/Highconic II角轉頭離心瓶
Fiberlite F15-6x100y、Fiberlite F10-6x100LEX和HIGHConic II為臺式多功能高速離心機通用的6?×?100mL角轉頭，可直接離心70mL/85mL/94mL/100mL離心瓶。適用于Multifuge X4R Pro、Multifuge X1R、Sorvall ST1R plus和Sorvall ST4R plus系列臺式低溫高速離心機。
商品名稱：70mL/85mL/94mL/100mL圓底管高速角轉頭 適配器
制 造 商：美國賽默飛(Thermo Fisher)公司
品 牌：Thermo Scientific
適配器及離心管詳情見：【訂購信息】
詳細介紹
Highconic II，F(xiàn)10-6x100 LEX和F1056x100y三款角轉頭，最大容量為6?×?100mL，適用于Multifuge X4R Pro、Multifuge X1R Pro、Multifuge X3R和Megafuge 40R系列臺式低溫高速離心。

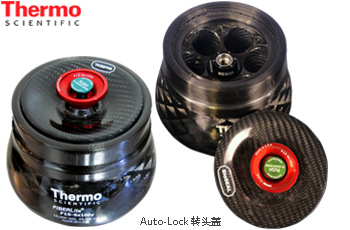

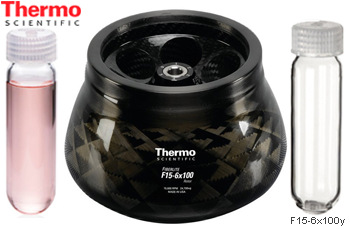

F15-6x100y可滿足細胞器離心分離、密度梯度離心等轉速及離心力要求較高的離心實驗，標配生物安全防護氣密性轉頭蓋。

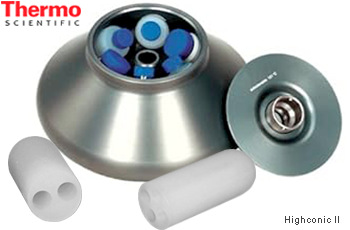

Highconic II可滿足10-100mL管10350rpm/RCF 15090×g離心，適用于常規高速分離，標配生物安全密封蓋。
F10-6x100 LEX的固定傾角為45°，比普通25°角轉頭離心沉淀物形成的團塊更緊密。常用于細菌或酵母細胞離心沉淀和質粒DNA的提取純化。
1、技術規格
轉頭型號 | Fiberlite F15-6x100y | Fiberlite F10-6x100 | HIGHConic II |
額定樣品容量 | 6×100mL | ||
最高轉速/RCF | 15000rpm/24652×g | 10500rpm/15038×g | 10350rpm/15090×g |
轉頭傾角 | 25° | 45° | 45° |
k-factor | 1536 | 3000 | 1713 |
加速至最高轉速所需時間(Acceleration Time) | 50 s | 45 s | 40 s |
從最高轉速下剎車所需時間(Braking Time) | 60 s | 50 s | 55 s |
轉頭材質 | 碳纖維 | 碳纖維 | 鋁合金 |
轉頭重量 | 3.63 kg | 3.3 kg | 3.6 kg |
2、適配離心管
Highconic II，F(xiàn)10-6x100 LEX和F10-6x100y三款角轉頭適用的離心管尺寸為φ38×105mm,可直接離心Nalgene 85mL Oak Ridge圓底管離心管。
可添加15mL和50mL錐形管適配器以及10mL、30mL、50mL圓底管適配器，兼容多種常用離心管。
訂購信息
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
F15-6x100y角轉頭 | Thermo | ?75003698 | each | Nominal Rotor capacity: 6×100mL Nominal Tube Dimensions: ?38×106 mm | 詢價 詢價 |
F10-6x100LEX角轉頭 | Thermo | 75003340 | each | Nominal Rotor capacity: 6×100mL Nominal Tube Dimensions: ?38×106 mm | 詢價 詢價 |
備用 O-型密封圈 | Thermo | 021-069031 | each | O-ring Kit for Fiberlite F15-6x100y Rotor | 詢價 |
HIGHConic角轉頭 | Thermo | ?75003620 | each | Nominal Rotor capacity:6×100mL Nominal Tube Dimensions: ?38×123 mm | 詢價 詢價 |
備用O-型密封圈 | Thermo | 75003058 | Set | Replacement Sealing O-Ring Set for HIGHConic II Aluminium Rotors set of two that includes grease | 詢價 |
HIGHConic角轉頭 | Thermo | ?75003620 | each | Nominal Rotor capacity:6×100mL Nominal Tube Dimensions: ?38×123 mm | 詢價 詢價 |
85mL圓底離心瓶 | Nalgene | 3118-0085pk | 50pcs/pk | Nalgene Oak Ridge Centrifuge Tube Capacity: 85mL(actual brim capacity 81mL) Nominal Tube Dimensions: ?38×106 mm Material: polycarbonate with PP screw closure Autoclavable Will withstand up to 50000xg | 詢價 詢價 |
50mL圓底管適配器 | Thermo | 75003102 | each | 50mL Oak Ridge Round Bottom Tube Adapter Nominal Tube Dimensions: ?29.4×117mm/?30×117mm | 詢價 詢價 |
30mL圓底管適配器 | Thermo | 75003094 | each | 38mL Round Bottom Tubes Adapter Nominal Tube Dimensions: ?26×110 mm | 詢價 詢價 |
16mL圓底管適配器 | Thermo | 76002906 | each | Nominal Rotor capacity:6×16mL Nominal Tube Dimensions: ?18×123 mm | 詢價 詢價 |
10mL圓底管適配器 | Thermo | 75003093 | each | 2×12mL Round Bottom Tubes Adapter Nominal Tube Dimensions: ?17×95 mm | 詢價 詢價 |
6.5mL圓底管適配器 | Thermo | 75003092 | each | 2×6.5mL Round Bottom Tubes Adapter Nominal Tube Dimensions: ?13×114 mm | 詢價 詢價 |
50mL錐形管適配器 | Thermo | 75003103 | each | 50mL Conical Tube Adapter Nominal Tube Dimensions: ?30×121 mm | 詢價 詢價 |
15mL錐形管適配器 | Thermo | 75003095 | each | 15mL Conical Tube Adapter Nominal Tube Dimensions: ?17×123 mm | 詢價 詢價 |
-
