Himac離心機轉頭適配離心管

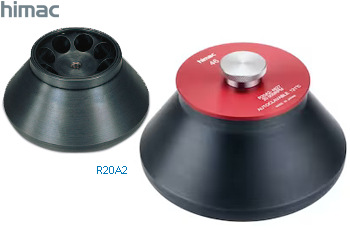

CR22N/CR30NX離心機50mL管角轉頭R20A2/R17A
角轉頭R17A、R20A2同屬50mL圓底管用高速角轉頭,常用于細胞器(葉綠體、線粒體等)分離(Organelle,chloroplast, mitochondria etc. Pelleting)和DNA、RNA沉淀,適用于CR22N、CR30NX立式高速冷凍離心機。
商品名稱:R20A2 R17A Fixed angle rotor 50PA離心管
制 造 商:eppendorf公司
品 牌:Himac
轉頭適配離心管見:[訂購信息]
詳細描述
角轉頭R17A、R20A2同屬50mL圓底管高速角轉頭,常用于細胞器(葉綠體、線粒體等)分離(Organelle,chloroplast, mitochondria etc. Pelleting)和DNA、RNA沉淀。適用于CR22N、CR30NX立式高速冷凍離心機。
1、主要技術規格
轉頭型號 | R17A(CR30NX) | R20A2(CR30NX /CR22N) |
額定工作容量 | 50 mL×14 | 50 mL×8 |
適用的離心瓶規格 | 50mL/12mL/11mL/10mL/1.5mL | |
最高轉速/RCF | 17000rpm/Max. RCF 40900×g | 20000 rpm/Max. RCF 48000×g |
轉頭離心孔傾斜角度 | 25° | 34° |
最高轉速時k factor | 328 | 424 |
轉頭材質 | 鋁合金(Aluminum alloy) | |
轉頭自身空重 | 11 kg | 6.8 kg |
2、轉頭標準工作組件
轉頭型號 | R17A(CR30NX) | R20A2(CR30NX /CR22N) |
50PA Tube (5721411056) | 14 pcs | 8 pcs |
M-PP Lid (5721411074) | 14 pcs | 8 pcs |
Cover O-Ring (5721411129) | 1x | 1x |
Handle O-Ring (5721411119) | 1x | 1x |
訂貨信息
R20A2 R17A角轉頭無需適配器即可直接使用50mL圓底離心管。此外,還提供了多種適配器,兼容12mL、11mL、10mL和1.5mL管離心。
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
50mL角轉頭R20A2 | Himac | 5721302106 | 1 set | R20A2 Fixed Angle Rotor Package - CR22N Max. Speed 20000rpm/Max. RCF 48000xg; Tubes Nominal Capacity: 8×50 mL; Tube dimensions: ?29×103 mm | 詢價 |
50mL角轉頭R20A2 | Himac | 5721221005 | each | R20A2 fixed angle rotor package - CR30NX Max. Speed 20000rpm/Max. RCF 48000xg Tubes Nominal Capacity: 8×50 mL Tube dimensions: ?29×103 mm Including 50PA tube×8 pcs | 詢價 |
R17A角轉頭 | Himac | 5721302109 | 1 set | R17A Fixed Angle Rotor Package - CR30NX Max. Speed 17000rpm/Max. RCF 40900×g Maximum tube capacity 50mL×14 | 詢價 |
50SS鋼離心管 | Himac | 5721411058 | 2 pcs/set | 50SST Tube Nominal Tube Size: φ2.9×10.2 cm; Tube Material: SST; Net Sample Volume: 36mL; Max. Speed 26000rpm/Max. RCF 82400×g | 詢價 詢價 |
50PP離心瓶 | Himac | 5721411008 | 10 pcs/set | 50PP Bottle Assy (Incl. M screw cap) Nominal Tube Size: φ2.9×10.3 cm; Tube Material: PP; Net Sample Volume: 32mL; Max. Speed 30000rpm/Max. RCF 110000×g | 詢價 詢價 |
50PC離心瓶 | Himac | 5721411009 | 10 pcs/set | 50PC Bottle ASSY Nominal Tube Size: φ2.9×10.3 cm; Tube Material: PC; Net Sample Volume: 36mL; Max. Speed 30000rpm/Max. RCF 110000×g | 詢價 詢價 |
50PA薄壁開口管 | Himac | 5721411056 | 10 pcs/set | 50PA Tube for rotors R14A, R20A2, R22A3 Nominal Tube Size: φ2.9×10.4 cm; Tube Material: PP; Net Sample Volume: 34mL; Max. Speed 23900rpm/Max. RCF 69600×g M-PP Lid required | 詢價 詢價 |
50PC薄壁開口管 | Himac | 5721411057 | 10 pcs/set | 50PC Tube Nominal Tube Size: φ2.9×10.3 cm; Tube Material: PC; Net Sample Volume: 36mL; Max. Speed 30000rpm/Max. RCF 110000×g M-PP Lid required | 詢價 詢價 |
M-PP管蓋組件 | Himac | 5721411074 | 20 pcs/set | M-PP Lid for 50PA/PC Tube | 詢價 詢價 |
12SS鋼離心管 | Himac | 5720411023 | 2 pcs/set | 12SS Tube for R20A2 Fixed angle rotor Nominal Tube Size: φ1.6×7.6 cm; Tube Material: SST; Net Sample Volume: 10mL; Maximum Speed 17000rpm/Max. RCF 32900xg 11A50 Adapter(C) required | 詢價 詢價 |
12PC薄壁開口管 | Himac | 5720411022 | 50 pcs/set | 12PC Tube for R20A2 rotor Nominal Tube Size: φ1.6×7.6 cm; Tube Material: PC; Net Sample Volume: 10.5mL; Maximum Speed 15000rpm/Max. RCF 22900xg 11A50 Adapter(C) required | 詢價 詢價 |
12PE薄壁開口管 | Himac | 5720411021 | 50 pcs/set | 12PE Tube for R20A2 angle rotor Nominal Tube Size: φ1.6×7.5 cm; Tube Material: PE; Net Sample Volume: 10.5mL; Maximum Speed 15000rpm/Max. RCF 22900xg 11A50 Adapter(C) required | 詢價 詢價 |
12PA薄壁開口管 | Himac | 5720411020 | 50 pcs/set | 12PA Tube for R20A2 rotor Nominal Tube Size: φ1.6×7.6 cm; Tube Material: PP; Net Sample Volume: 10.5mL; Maximum Speed 15000rpm/Max. RCF 22900xg 11A50 Adapter(C) required | 詢價 詢價 |
11A50適配器(C) | Himac | 5721411187 | 2 pcs/set | 11A50 Adapter(C) for R20A2 rotor applicable tube size: 2.9×9.8 cm; Adapter Material: PP; Number of tubes per Adapter: 1 | 詢價 詢價 |
C2-AL Cap | Himac | 5721411070 | 1 pc/set | C2-AL Cap | 詢價 詢價 |
11PA厚壁離心管 | Himac | 5721411043 | 10 pcs/set | 11PA Thick-walled Tube(for R20A2 rotor) Nominal Tube Size: φ1.6×8.2 cm; Tube Material: PP; Net Sample Volume: 8mL; Maximum Speed 15000rpm/Max. RCF 22900xg 11A50 Adapter(C) required | 詢價 詢價 |
11A50適配器(C) | Himac | 5721411187 | 2 pcs/set | 11A50 Adapter(C) (for R20A2 rotor) applicable tube size: 2.9×9.8 cm; Adapter Material: PP; Number of tubes per Adapter: 1 | 詢價 詢價 |
C2-PP管蓋組件 | Himac | 5721411071 | 20 pcs/set | C2-PP LID for 11PA Thick-walled Tube | 詢價 詢價 |
11PC厚壁離心管 | Himac | 5721411044 | 10 pcs/set | 11PC Thick-walled Tube(for R20A2 rotor) Nominal Tube Size: φ1.6×8.3 cm; Tube Material: PC; Net Sample Volume: 8.4mL; Maximum Speed 15000rpm/Max. RCF 22900xg 11A50 Adapter(C) required | 詢價 詢價 |
11A50適配器(C) | Himac | 5721411187 | 2 pcs/set | 11A50 Adapter(C) (for R20A2 rotor) applicable tube size: 2.9×9.8 cm; Adapter Material: PP; Number of tubes per Adapter: 1 | 詢價 詢價 |
10PC離心瓶 | Himac | 5720411027 | 10 pcs/set | 10PC bottle Assy(for R20A2 rotor) Nominal Tube Size: φ1.6×8.2 cm; Tube Material: PC; Net Sample Volume: 8mL; Maximum Speed 22000rpm/Max. RCF 55100xg 11A50 Adapter(C) required | 詢價 詢價 |
11A50適配器(C) | Himac | 5721411187 | 2 pcs/set | 11A50 Adapter(C) (for R20A2 rotor) applicable tube size: 2.9×9.8 cm; Adapter Material: PP; Number of tubes per Adapter: 1 | 詢價 詢價 |
10mL玻璃離心管 | Himac | 5721411042 | 50 pcs/set | 10ml Glass Tube(for R20A2 rotor) Nominal Tube Size: φ1.2×10.5 cm; Tube Material: Glass; Net Sample Volume: 7.2mL; Maximum Speed 4000rpm/Max. RCF 2700xg 10GA50 Adapter required | 詢價 詢價 |
10GA50適配器 | Himac | 5721411086 | 8 pcs/set | 10GA50 Adapter(for R20A2 rotor) applicable tube size: 2.8×10.1 cm; Adapter Material: NBR; Number of tubes per Adapter: 1 | 詢價 詢價 |
1.5×2A50適配器 | Himac | 5721411075 | 2 pcs/set | 1.5X2A50 Adapter(for R20A2 rotor) applicable tube size: 2.8×10.0 cm; Adapter Material: POM; Number of tubes per Adapter: 1 | 詢價 詢價 |
-
