Himac離心機轉頭適配離心管

CR22N離心機500mL管角轉頭R10A3/R12A6

Himac CR22N 立式低溫高速離心機角轉頭R10A3可容納6個500mL 的500PA離心瓶，最高轉速10000，主要用于大量發酵培養的生物工程菌、細胞高效離心收集。

商品名稱：R10A3 R12A6 角轉子 Fixed angle rotor 500PA Bottle

制 造 商：eppendorf公司

品    牌：Himac

轉頭適配離心瓶見：［訂購信息］

詳細描述

R10A3、R12A6角轉頭，可容納500mL PA離心瓶，常用于收獲細菌、細胞或酵母離心，適用于CR22N立式高速冷凍離心機（R10A3同時也配屬于于CR30NX）。

1、主要技術規格

轉頭型號

R10A3

R12A6

額定工作容量（nominal capacity）

500 mL×6

500mL×4

最高轉速

10000rpm/Max.   RCF 18800×g

12000   rpm/Max. RCF 22500×g

離心孔傾斜角度

26°

23°

最高轉速時k factor

1726

1245

轉頭材質

鋁合金（Aluminum alloy）

轉頭自身空重

14.6 kg

14.8 kg



2、轉頭標準工作組件

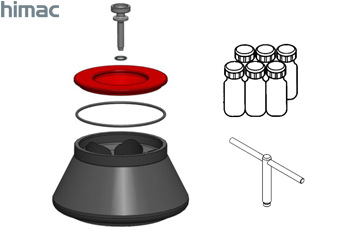

500mL角轉頭由轉頭主體Rotor body、轉頭蓋Rotor cover、蓋子鎖定手柄Cover-locking knob、手柄含氟橡膠小墊圈(Fluorine-contained rubber)、轉頭蓋O-型密封墊圈(Nitrile rubber)組成。

標準附件

R10A3

R12A6

500PA Bottle

5721411014  6pcs

5721411014  4pcs

Rotor Set Handle

5721411239   1x

O-Ring for Handle

5720410231  O-Ring 1AG220  1x

5720410166  O-Ring 1AV175  1x

O-Ring for Rotor Cover

5721411120  O-Ring 4DV24  1x

5721411119  O-Ring 1AV24  1x

R10A3、R12A6適配的500mL離心瓶為Himac 500PA Bottle。




訂貨信息

品名

品牌

貨號

規格

描述

報價

500mL×6角轉頭R10A3

Himac

5721221013

1 set

R10A3 Fixed Angle Rotor Package

Max. Speed 10000rpm/Max. RCF   18800xg;

Tubes Nominal Capacity: 6×500 mL;

Tube dimensions: ?73×163 mm

詢價

500mL×4角轉頭R12A6

Himac

5721221010

1 set

R12A6 Fixed Angle Rotor Package

Max. Speed 12000rpm/Max. RCF 22500xg;

Tubes Nominal Capacity: 4×500 mL;

Tube dimensions: ?73×163 mm

詢價







500PA離心瓶

Himac

5721411014

4 pcs/set

500PA Bottle including caps

Nominal Tube Size: φ7.3×16.3 cm;

Tube Material: PP;

Net Sample Volume: 410mL;

Maximum Speed  10000rpm/Max. RCF 18800xg

詢價

詢價

500PA密封蓋離心瓶

Himac

5721411015

4 pcs/set

500PA Seal Bottle including caps

Nominal Tube Size: φ7.3×16.3 cm;

Tube Material: PP;

Net Sample Volume: 500mL;

Maximum Speed  8000rpm/Max. RCF 12000xg

詢價

詢價







500SS鋼離心瓶

Himac

5721411018

2 pcs/set

500SST Bottle

Nominal Tube Size: φ7.3×16.5 cm;

Tube Material: SST;

Net Sample Volume: 400mL;

Maximum Speed  10000rpm/Max. RCF 18800xg

詢價

詢價

500SS鋼離心管

Himac

5721411065

2 pcs/set

500SST Tube

Nominal Tube Size: φ7.3×15.0 cm;

Tube Material: SST;

Net Sample Volume: 290mL;

Maximum Speed  8000rpm/Max. RCF 12000xg

詢價

詢價







300SS鋼離心管

Himac

5721411063

2 pcs/set

300SST Tube

Nominal Tube Size: φ6.2×12.8 cm;

Tube Material: SST;

Net Sample Volume: 160mL;

Maximum Speed  10000rpm/Max. RCF 17800xg

詢價

詢價

300A500適配器

Himac

5721411108

2 pcs/set

300A500 Adapter (B)

applicable tube size: 7.3×12.5 cm;

Adapter Material: PP;

Number of tubes per Adapter: 1

詢價

詢價







250PP離心瓶

Himac

5721411012

10 pcs/set

250PP Bottle

Nominal Tube Size: φ6.2×12.4 cm;

Tube Material: PP;

Net Sample Volume: 250mL;

Maximum Speed  10000rpm/Max. RCF 17800xg

300A500 Adapter(B) required

詢價

詢價

250PC離心瓶

Himac

5721411013

10 pcs/set

250PC Bottle ASSY

Nominal Tube Size: φ6.2×12.4 cm;

Tube Material: PC;

Net Sample Volume: 250mL;

Maximum Speed  10000rpm/Max. RCF 17800xg

300A500 Adapter(B) required

詢價

詢價

300A500適配器

Himac

5721411108

2 pcs/set

300A500 Adapter (B)

applicable tube size: 7.3×12.5 cm;

Adapter Material: PP;

Number of tubes per Adapter: 1

詢價

詢價







94SS鋼離心管

Himac

5720411165

2 pcs/set

94SS Tube ASSY

Nominal Tube Size: φ3.8×10.1 cm;

Tube Material: SST;

Net Sample Volume: 58mL;

Maximum Speed  8000rpm/Max. RCF 9600xg

80A500 Adapter required

詢價

詢價

80PA離心瓶

Himac

5721411010

10 pcs/set

80PA Bottle

Nominal Tube Size: φ3.8×10.4 cm;

Tube Material: PP;

Net Sample Volume: 60mL;

Maximum Speed  8000rpm/Max. RCF 9600xg

80A500 Adapter required

詢價

詢價

70PC離心瓶

Himac

5721411011

10 pcs/set

70PC Bottle

Nominal Tube Size: φ3.8×10.4 cm;

Tube Material: PC;

Net Sample Volume: 55mL;

Maximum Speed  8000rpm/Max. RCF 9600xg

80A500 Adapter required

詢價

詢價

80A500適配器

Himac

5721411105

2 pcs/set

80A500 Adapter

applicable tube size: 7.3×12.5 cm;

Adapter Material: NBR;

Number of tubes per Adapter: 1

詢價

詢價







50PP離心瓶

Himac

5721411008

10 pcs/set

50PP Bottle

Nominal Tube Size: φ2.9×10.3 cm;

Tube Material: PP;

Net Sample Volume: 32mL;

Maximum Speed  8000rpm/Max. RCF 10700xg

50×3A500 Adapter(B) required

詢價

詢價

50PC離心瓶

Himac

5721411009

10 pcs/set

50PC Bottle ASSY

Nominal Tube   Size: φ2.9×10.3 cm;

Tube Material:   PC;

Net Sample   Volume: 36mL;

Maximum Speed    22000rpm/Max. RCF 58700xg

50×3A500 Adapter(B) required

詢價

詢價

50SS鋼離心管

Himac

5721411058

2 pcs/set

50SST Tube

Nominal Tube Size: φ2.9×10.2 cm;

Tube Material: SST;

Net Sample Volume: 36mL;

Maximum Speed  8000rpm/Max. RCF 10700xg

50×3A500 Adapter(B) required

詢價

詢價

50×3A500適配器

Himac

5721411099

2 pcs/set

50×3A500 Adapter(B)

applicable tube size: 7.3×12.5 cm;

Adapter Material: PP;

Number of tubes per Adapter: 3

詢價

詢價







50PA開口薄壁離心管

Himac

5721411056

10 pcs/set

50PA Tube for rotors R14A, R20A2,   R22A3

Nominal Tube Size: φ2.9×10.4 cm;

Tube Material: PP;

Net Sample Volume: 34mL;

Maximum Speed  8000rpm/Max. RCF 10700xg

詢價

詢價

50PC開口薄壁離心管

Himac

5721411057

10 pcs/set

50PC Tube

Nominal Tube   Size: φ2.9×10.3 cm;

Tube Material:   PC;

Net Sample   Volume: 36mL;

Maximum   Speed  22000rpm/Max. RCF 58700xg

詢價

詢價

50×3A500適配器

Himac

5721411099

2 pcs/set

applicable tube size: 7.3×12.5 cm;

Adapter Material: PP;

Number of tubes per Adapter: 3

詢價

詢價

開口管蓋組件

Himac

5721411074

20 pcs/set

M-PP Lid for   50PA/PC Tube

詢價

詢價







50mL玻璃管

Himac

5721411059

10 pcs/set

50 GLASS Tube ASSY

Nominal Tube Size: φ3.5×10.0 cm;

Tube Material: Glass;

Net Sample Volume: 35mL;

Maximum Speed  4000rpm/Max. RCF 2400xg

50GA500 Adapter required

詢價

詢價

50GA500適配器

Himac

5721411103

2 pcs/set

50GA500 Adapter ASSY

applicable tube size: 7.3×12.5 cm;

Adapter Material: NBR;

Number of tubes per Adapter: 1

詢價

詢價







10mL玻璃管

Himac

5721411042

50 pcs/set

10ml Glass Tube

Nominal Tube Size: φ1.2×10.5 cm;

Tube Material: Glass;

Net Sample Volume: 7.2mL;

Maximum Speed  4000rpm/Max. RCF 2700xg

10G19A500 Adapter required

詢價

詢價

10G19A500適配器

Himac

5721411083

2pcs/set

10G19A500 Adapter

applicable tube size: 7.3×12.5 cm;

Adapter Material: POM;

Number of tubes per Adapter: 19

詢價

詢價







3mL圓底玻璃管

NA

NA

NA

3ml PYREX Tube

Nominal Tube Size: φ1.0×7.5 cm;

Tube Material: Glass;

Net Sample Volume: 3mL;

Maximum Speed  7000rpm/Max. RCF 8900xg

3G18A500 Adapter required

NA

3G18A500適配器

Himac

5721411098

2 pcs/set

3G18A500 Adapter ASSY

applicable tube size: 7.3×12.7 cm;

Adapter Material: PP;

Number of tubes per Adapter: 18

詢價

詢價
