Optima超速離心機轉頭適配離心管

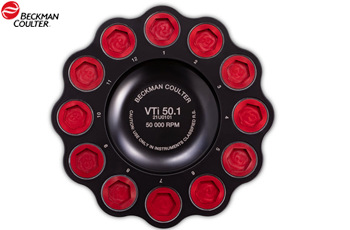

Optima XE-100/90超速離心機VTi 50.1垂直轉頭
VTi 50.1垂直轉頭可離心12支39mL熱封管、27mL熱封管或36.2mL指封管，滿足DNA或病毒顆粒的密度梯度分離應用要求。適用于Optima XPN-100/XPN-90/XPN-80和Optima XE-100/XE-90系列立式超速離心機。
商品名稱：VTi 50.1垂直轉頭 VTi 50.1 Vertical-Tube Rotor
制 造 商：美國貝克曼庫爾特(Beckman Coulter)公司
品 牌：Beckman
轉頭配套適配器、離心管見:［訂購信息］
VTi 50.1垂直轉頭，最大離心容量12×39mL。轉子產生離心力，可以用于DNA或病毒顆粒的密度梯度分離。適用于貝克曼Optima XPN-100/XPN-90/XPN-80系列高端立式超速離心機和Optima XE-100/XE-90系列基礎型超速離心機。
1、轉頭的組成
VTi 50.1垂直轉頭由鈦合金制成，并涂有黑色聚氨酯（polyurethane）漆。
Quick-Seal和OptiSeal兩款離心管，需添加管蓋狀的管帽適配器/墊片（tube spacer）對離心管上部提供支撐，避免在強大水平離心力作用下，離心管上部變形。透明適配器用于Quick-Seal快封管，金色陽極氧化鋁材質適配器用于OptiSeal管。
超速離心機運行中，為避免因離心管內殘留少量空氣因直接暴露于離心腔體的真空環境而過度膨脹、離心管變形引發樣品泄漏風險，需將離心孔內的氣壓維持在實驗室正常氣壓水平。轉頭標配的紅色陽極氧化鋁材質六邊形轉頭塞（hex-cavity rotor plug）與密封墊圈（plug gasket），用于有效密封離心孔，將離心管與離心腔真空環境有效隔離。
為了防止超速，超速離心機中的光電探測器會監測轉子底部的超速盤，如果檢測到速度超過額度轉速，則會自動關閉運行。
2、轉頭技術規格
VTi 50.1垂直轉頭最高速度：50000 rpm
最高轉速時溶液額定密度值（Density rating at maximum speed）：1.7 g/mL
最高轉速時相對離心場（Relative Centrifugal Fielda）:
最大離心半徑/最大離心力：Rmax (89.7 mm)/251000×g;
平均離心半徑/平均離心力：Rav (76.8 mm)/215000×g;
最小離心半徑/最小離心力：Rmin (63.9 mm)/179000×g;
最大速度下 k 系數(k factor)：34
離心管額度尺寸（Nominal tube dimensions)：25 × 89 mm
額定離心容量：12 × 39 mL
達到最大速度的近似加速時間（滿載）：13 min
從最大速度（滿載）開始的近似減速時間：14 min
滿載轉頭重量：12.6 kg
轉頭材料：鈦合金（titanium）
訂購信息
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
VTi 50.1垂直轉頭套件 | Beckman | C78759 | set | VTi 50.1 Rotor Package Standard accessories includes: 1x 332688 Rotor Vise 1x 369791 Torque Wrench 1x 355588 Hex Plug Adapter 2x 330336 Spare Over-speed Disks 12x 340825 Rotor Plug Gaskets (Sealing Washers) 1x 306812 Spinkote Lubricant 2 oz | 詢價 詢價 |
39mL熱封管工作套裝 | Beckman | 360975 | set | 39mL Polypropylene Quick-Seal Tubes Kit includes: 4盒 342414 Quick-Seal Polypropylene Tubes 10個 342417 Tube Spacers 1個 348124 Tube Rack 1個 361668 Tube Extraction Tool (Cordless Tube Topper Kit required) | 詢價 詢價 |
36.2mL指封管工作套裝 | Beckman | 360974 | set | 36.2mL Polypropylene OptiSeal Tube Kit includes: 4盒 362183 OptiSeal Polypropylene Tubes 10個 362204 Φ25mm Tube Spacers 1個 360542 Φ25mm Tube Rack 1個 361668 Tube Extraction Tool (Cordless Tube Topper Kit required) | 詢價 詢價 |
39mL超凈熱封管 | Beckman | 344326 | 50/pkg | 38.5mL Quick-Seal Round-Top Ultra-Clear Tube Nominal Size: 25 x 89mm - 50Pk Applicable Ultracentrifuge Rotors: Type 70 Ti, Type 50.2 Ti, VTi 50.1 Applicable Max. speed: 70000rpm Required Cap Spacers 342417 | 詢價 詢價 |
39mL超凈熱封管 | Beckman | C14299 | 48/pkg | ?C-Free & Sterile 39mL Ultra-Clear Quick-Seal Tube Nominal Size: 25 x 89mm Applicable Rotors Type 70 Ti, Type 50.2 Ti, VTi 50/VTi 50.1 Applicable Max. speed: 70000rpm Required Cap Spacers 342417 | 詢價 詢價 |
Φ25mm浮置墊片 | Beckman | 342417 | 1/pkg | 13mm Diameter Aluminum Tube Spacer | 詢價 詢價 |
Φ25mm離心管架 | Beckman | 348124 | 1/pkg | 25.4mm Diameter Tube Rack | 詢價 詢價 |
39mL熱封管 | Beckman | 342414 | 50/pkg | Standard 39mL Quick-Seal Round-Top Polypropylene Tube Nominal Size: 25 x 89mm - 50Pk Applicable Rotors: Type 70 Ti, Type 50.2 Ti, VTi 50.1/VTi 50 Applicable Max. speed: 70000rpm Required Cap Spacers 342417 | 詢價 詢價 |
39mL熱封管 | Beckman | C14304 | 48/pkg | ?39mL Round Bottom Polypropylene Tube, C-Free & Sterile Nominal Size: 25 x 89mm - 48Pk Applicable Rotors: Type 70 Ti, Type 50.2 Ti, VTi 50.1/VTi 50 Applicable Max. speed: 70000rpm Required Cap Spacers 342417 | 詢價 詢價 |
Φ25mm浮置墊片 | Beckman | 342417 | 1/pkg | 13mm Diameter Aluminum Tube Spacer | 詢價 詢價 |
Φ25mm離心管架 | Beckman | 348124 | 1/pkg | 25.4mm Diameter Tube Rack | 詢價 詢價 |
36.2mL指封管 | Beckman | 362183 | 56/pkg | 36.2mL OptiSeal Polypropylene Tube Nominal Size: 25 x 89mm - 56Pk Applicable Ultracentrifuge Rotor: VTi 50, VTi 50.1 Applicable Max. speed: 50000rpm Required Aluminum Cap Spacer 362204 | 詢價 詢價 |
Φ25mm管帽墊片 | Beckman | 362204 | 1/pkg | gold-anodized aluminum spacer 25mm Diameter Aluminum Tube 適用于：362183 | 詢價 詢價 |
指封管架 | Beckman | 360542 | 1/pkg | 25x89mm OptiSeal Tube Rack | 詢價 詢價 |
27mL熱封管 | Beckman | 343665 | 50/pkg | 27mL Quick-Seal Bell-TopPolypropylene Tube Nominal Size: 25×64mm - 50Pk Applicable Max. Speed: 50000rpm Required Spacer: 342417 and 343448 Applicable Rotors: Type 70 Ti, Vertical: VTi 50.1. | 詢價 詢價 |
27mL超凈熱封管 | Beckman | 344323 | 50/pkg | 27mL Quick-Seal Bell-Top Ultra-Clear Tube Nominal Size: 25×64mm - 50Pk Applicable Max. Speed: 50000rpm Required Spacer: 342417 and 343448 | 詢價 詢價 |
Φ13mm管帽墊片 | Beckman | 342417 | 1/pkg | 13mm Diameter Aluminum Cap Spacer Applicable Rotor: Type 70 Ti, Type 50.2 Ti, VTi 50.1 | 詢價 詢價 |
Φ25mm浮置墊片 | Beckman | 343448 | 1/pkg | 25mm Diameter Noryl Tube Spacer Applicable Rotor: Type 70 Ti, Type 50.2 Ti, VTi 50.1 | 詢價 詢價 |
Φ25mm離心管架 | Beckman | 348124 | 1/pkg | 25.4mm Diameter Tube Rack | 詢價 詢價 |
15mL超凈熱封管 | Beckman | 344324 | 50/pkg | 15mL Quick-Seal Bell-Top Ultra-Clear Tube Nominal Size: 25×38mm - 50Pk Applicable Max. Speed: 50000rpm Required Spacer: 342417 and 343448 | 詢價 詢價 |
15mL熱封管 | Beckman | 343664 | 50/pkg | 15mL Quick-Seal Bell-TopPolypropylene Tube Nominal Size: 25×38mm - 50Pk Applicable Max. Speed: 50000rpm Required Spacer: 342417 and 343448 | 詢價 詢價 |
Φ13mm管帽墊片 | Beckman | 342417 | 1/pkg | 13mm Diameter Aluminum Cap Spacer Applicable Rotor: Type 70 Ti, Type 50.2 Ti, VTi 50.1 | 詢價 詢價 |
Φ25mm浮置墊片 | Beckman | 343448 | 1/pkg | 25mm Diameter Noryl Tube Spacer Applicable Rotor: Type 70 Ti, Type 50.2 Ti, VTi 50.1 | 詢價 詢價 |
Φ25mm離心管架 | Beckman | 348124 | 1/pkg | 25.4mm Diameter Tube Rack | 詢價 詢價 |
-
